A Comprehensive Guide to Collets: From Material and Craftsmanship to Maintenance and Applications

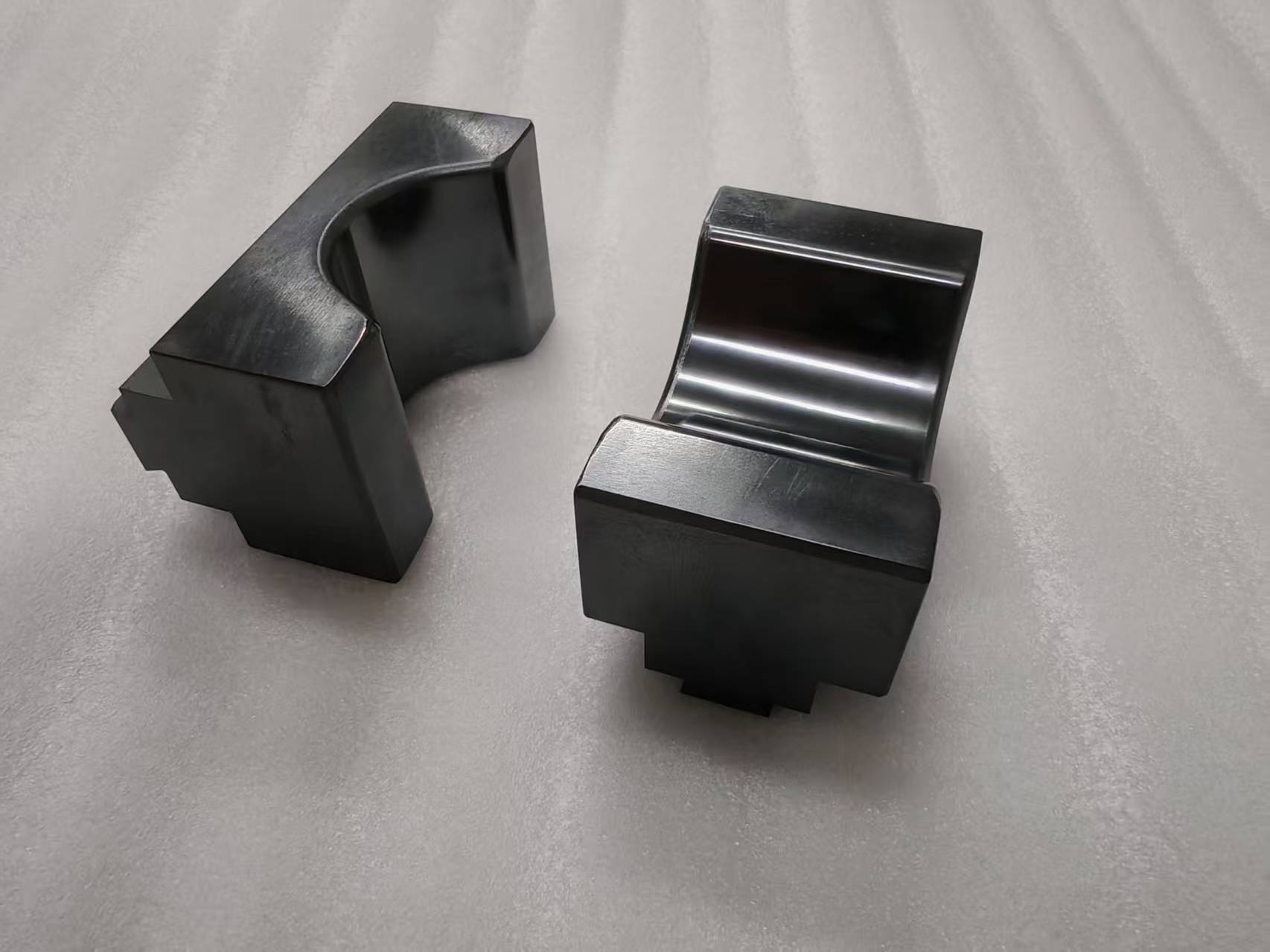

I. Core Materials of Collets: Performance and Selection Logic
As a key component for fixing workpieces in machining, the material selection of collets directly affects clamping accuracy and service life. Mainstream materials include:
- Alloy tool steel (e.g., SKD11, Cr12MoV):
High carbon content with added molybdenum, vanadium and other alloy elements. After quenching and tempering, the hardness reaches HRC58-62, featuring excellent wear resistance and impact resistance, suitable for heavy-duty cutting scenarios (such as lathe and milling machine collets).
- High-speed steel (HSS):
With red hardness, it maintains cutting performance at high temperatures, commonly used in drill and milling cutter collets for high-speed rotating conditions.
- Stainless steel (304, 316):
Strong corrosion resistance, mostly used in collets for food and medical equipment to avoid workpiece contamination.
- Cemented carbide (tungsten steel):
Hardness can exceed HV1300, with extremely high wear resistance but greater brittleness, often applied in precision grinders or micro collets.
II. Manufacturing Processes of Collets: Behind Precision Fabrication
1. Design and Modeling
- Complete 3D modeling via CAD software, optimize the collet structure based on the clamped object (such as round bars, plates, special-shaped parts), and focus on planning the clamping mouth taper, elastic groove distribution, and installation interfaces (such as Morse taper, BT tool holder).
2. Blank Preparation
- Adopt forging process to multi-directionally forge alloy steel, refine grains, eliminate internal defects, and improve material density (e.g., a 50mm diameter collet blank requires more than 3 times of upsetting and drawing).
3. Precision Machining
- Turning forming: Process the collet body on a CNC lathe, controlling the roundness of the clamping mouth within 0.005mm and the taper error within ±0.01°;
- Milling slotting: Machine elastic grooves with a five-axis milling machine, with groove depth precision of ±0.02mm to ensure uniform opening and closing of the collet;
- Grinding treatment: Finely grind the clamping surface with internal and external circular grinders, with surface roughness Ra≤0.8μm to avoid workpiece scratches.
4. Heat Treatment Strengthening
- Take SKD11 material as an example:
- Quenching: Preheat at 850°C, heat up to 1050°C and hold for 2 hours, cool to room temperature with oil, hardness reaches HRC60;
- Tempering: Hold at 200°C for 3 hours to eliminate internal stress and improve toughness, with final hardness stabilized at HRC58-60.
5. Surface Treatment
- Nitriding treatment: Nitriding in ammonia at 500-570°C for 30 hours to form a 0.1-0.3mm nitride layer on the surface, increasing hardness to HV900 and wear resistance by 3 times;
- PVD coating: Deposit TiN (golden yellow) or TiCN (black) coating with a thickness of 1-3μm to reduce friction coefficient and enhance corrosion resistance.
6. Full Inspection Process
- Coordinate measuring machine detects the diameter tolerance (±0.01mm) and coaxiality (≤0.015mm) of the clamping mouth;
- Tensile testing machine verifies the clamping force (e.g., a Φ10mm collet should withstand ≥500N axial tension without deformation).
III. Diverse Application Scenarios of Collets: The "Universal Gripper" in Industry
1. Machining Industry
- Lathe collets: Three-jaw self-centering collets clamp round bar materials with repeat positioning accuracy of ±0.02mm, suitable for turning of shaft parts;
- Milling collets: ER elastic collets cooperate with tool holders to clamp tools with diameters of 3-32mm, ensuring runout ≤0.01mm in high-speed milling.
2. Aerospace Manufacturing
- Special collets for carbon fiber composite processing: Adopt rubber gasket + aluminum alloy frame structure to avoid workpiece delamination caused by clamping stress, used for drilling aircraft skins.
3. Electronic Precision Processing
- Micro collets (clamping range 0.1-3mm): Ceramic material with anti-static design, used for positioning chip pins in semiconductor packaging equipment.
4. Medical Device Field
- Stainless steel sterile collets: Surface electropolished (Ra≤0.2μm), suitable for precision turning of surgical instrument pipes, complying with ISO13485 standards.
IV. Maintenance and Care of Collets: Key Rules for Prolonging Service Life
1. Daily Usage Specifications
- Clean the oil stains on the workpiece surface before clamping to avoid clamping eccentricity caused by impurities;
- Strictly prohibit over-range clamping (e.g., forcing a Φ10mm collet to clamp a Φ12mm workpiece) to prevent elastic groove cracking.
2. Regular Maintenance Process
- Cleaning and rust removal: Soak the collet in kerosene for 15 minutes, remove iron filings with a soft brush, and apply a thin layer of rust-proof oil (such as WD-40) after drying;
- Wear detection: Check the wear of the clamping mouth with a plug gauge, and replace it if the diameter expansion exceeds 0.05mm;
- Lubrication maintenance: Apply high-temperature lithium-based grease to the guide surface of sliding collets every 200 hours to reduce friction loss.
3. Special Scenario Maintenance
- After use in humid environments: Immediately blow dry internal moisture with dry compressed air to prevent stainless steel collets from rusting;
- After high-speed cutting: Wait for the collet to cool to room temperature before disassembly to prevent accuracy degradation caused by thermal expansion and contraction.
V. Conclusion
From material selection to process optimization, collets bear "great precision" as "small components". Whether in the precision machining of automobile engine blocks or the assembly of aerospace fasteners, their performance directly affects product quality. Mastering correct maintenance methods not only extends the service life of collets but also safeguards the stability of industrial production.
